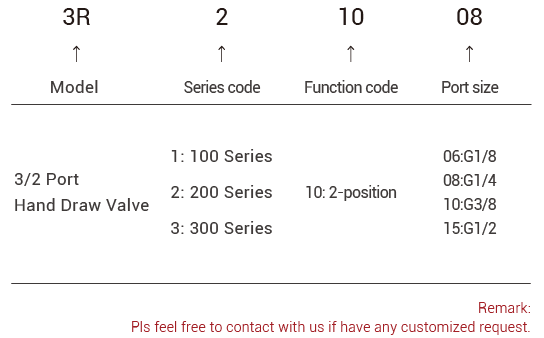

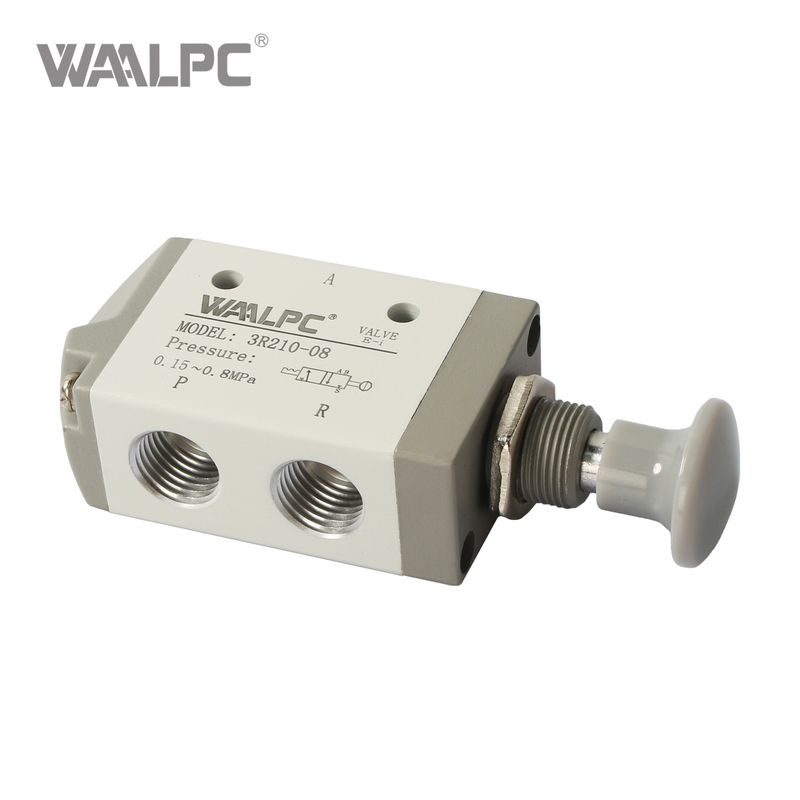

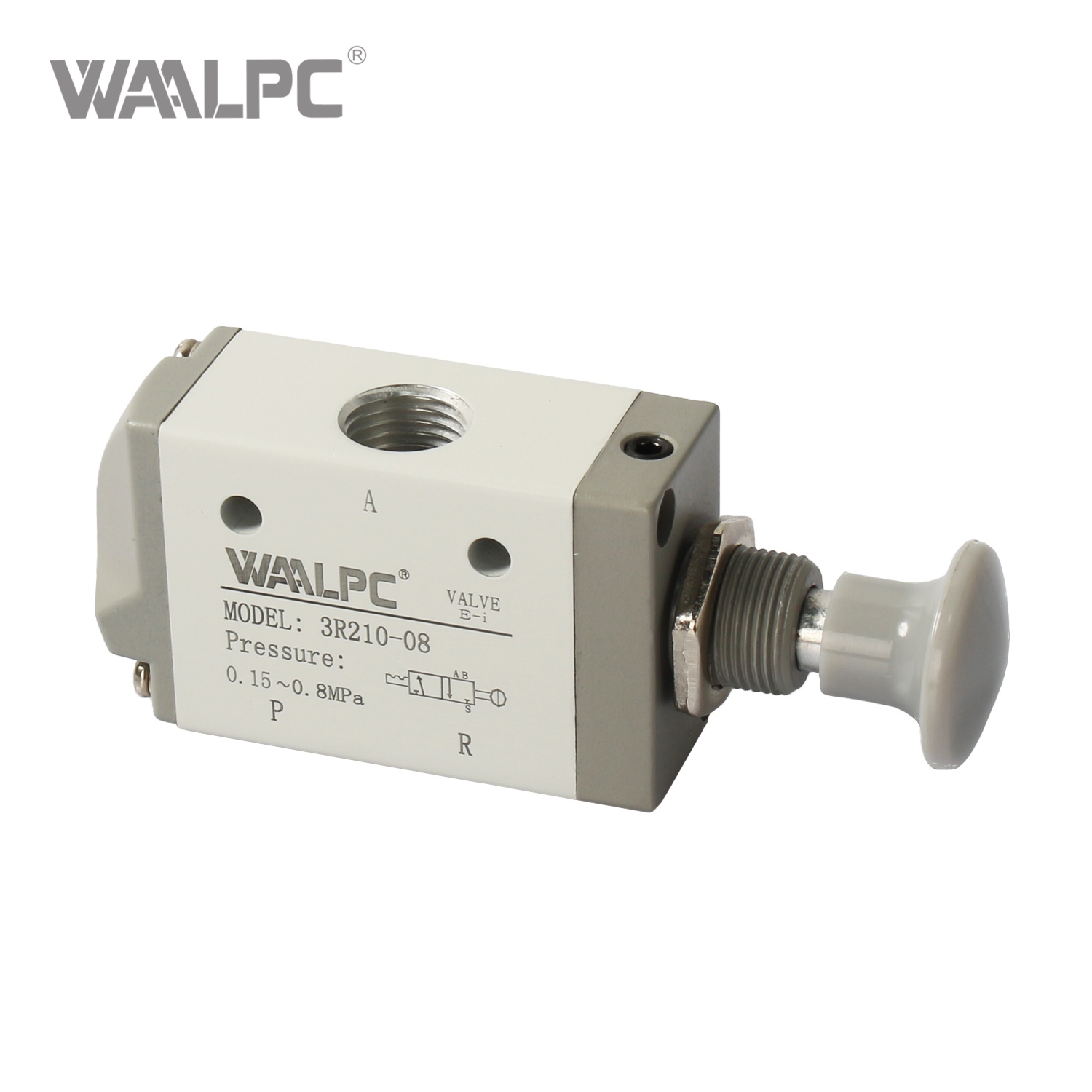

订购代码
规格
型号 | 3R110-06 | 3R210-08 | 3R310-10 | 3R410-15 |
工作介质 | 空气（经40μm滤芯过滤） | |||
| 作用模式 | 手控直动式 | |||
接口尺寸 | G1/8 | G1/4 | G3/8 | G1/2 |
有效截面积 | 12.0平方毫米 (CV=0.67) | 16平方毫米 (CV=0.89) | 30.0平方毫米 (CV=1.67) | 50.0平方毫米 （CV=2.79） |
位置 | 3端口2位 | |||
润滑 | 不需要 | |||
工作压力范围 | 0~0.8MPa(0~116psi) | |||
耐压 | 1.5MPa(215psi) | |||
工作温度 | -20~70℃ | |||
机身材质 | 铝合金 | |||

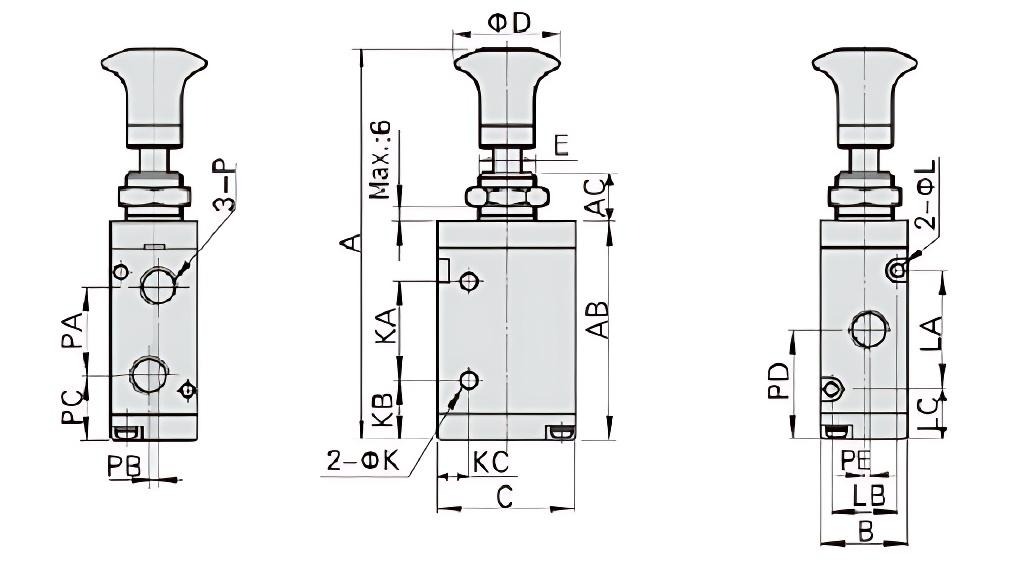

外形尺寸及结构
| 模型 | 3R110-06 | 3R210-06 | 3R210-08 | 3R310-08 | 3R310-10 |
| A | 87 | 98 | 98 | 106.5 | 106.5 |
| AB | 47.8 | 57.8 | 57.8 | 66.5 | 66.5 |
| AC | 10 | 10 | 10 | 10 | 10 |
| B | 18 | 22 | 22 | 27 | 27 |
| C | 27 | 35 | 35 | 40 | 40 |
| D | 25 | 25 | 25 | 25 | 25 |
| E | M12x0.75 | M14x1.0 | M14x1.0 | M16x1.0 | M16x1.0 |
| K | 3.1 | 4.3 | 4.3 | 4.3 | 4.3 |
| KA | 21 | 25 | 25 | 30 | 30 |
| KB | 13 | 16 | 16 | 18 | 18 |
| KC | 7.7 | 8 | 8 | 10 | 10 |
| L | 3.3 | 3.3 | 3.3 | 4.3 | 4.3 |
| LA | 19 | 30 | 30 | 35 | 35 |
| LB | 13 | 17 | 17 | 20 | 20 |
| LC | 14 | 13.5 | 13.5 | 15.5 | 15.5 |
| P | G1/8 | G1/8 | G1/4 | G1/4 | G3/8 |
| PA | 16 | 22.5 | 22.5 | 24 | 24 |
| PB | 2 | 0 | 0 | 0 | 0 |
| PC | 15.5 | 17.5 | 17.5 | 21 | 21 |
| PD | 24.5 | 28.5 | 28.5 | 33 | 33 |
| PE | 1 | 0 | 1.5 | 0 | 2 |
