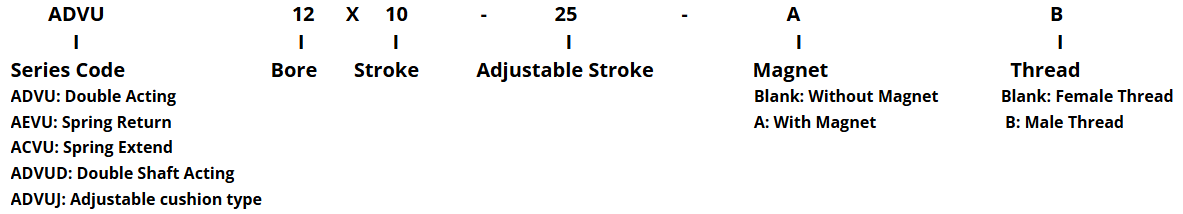

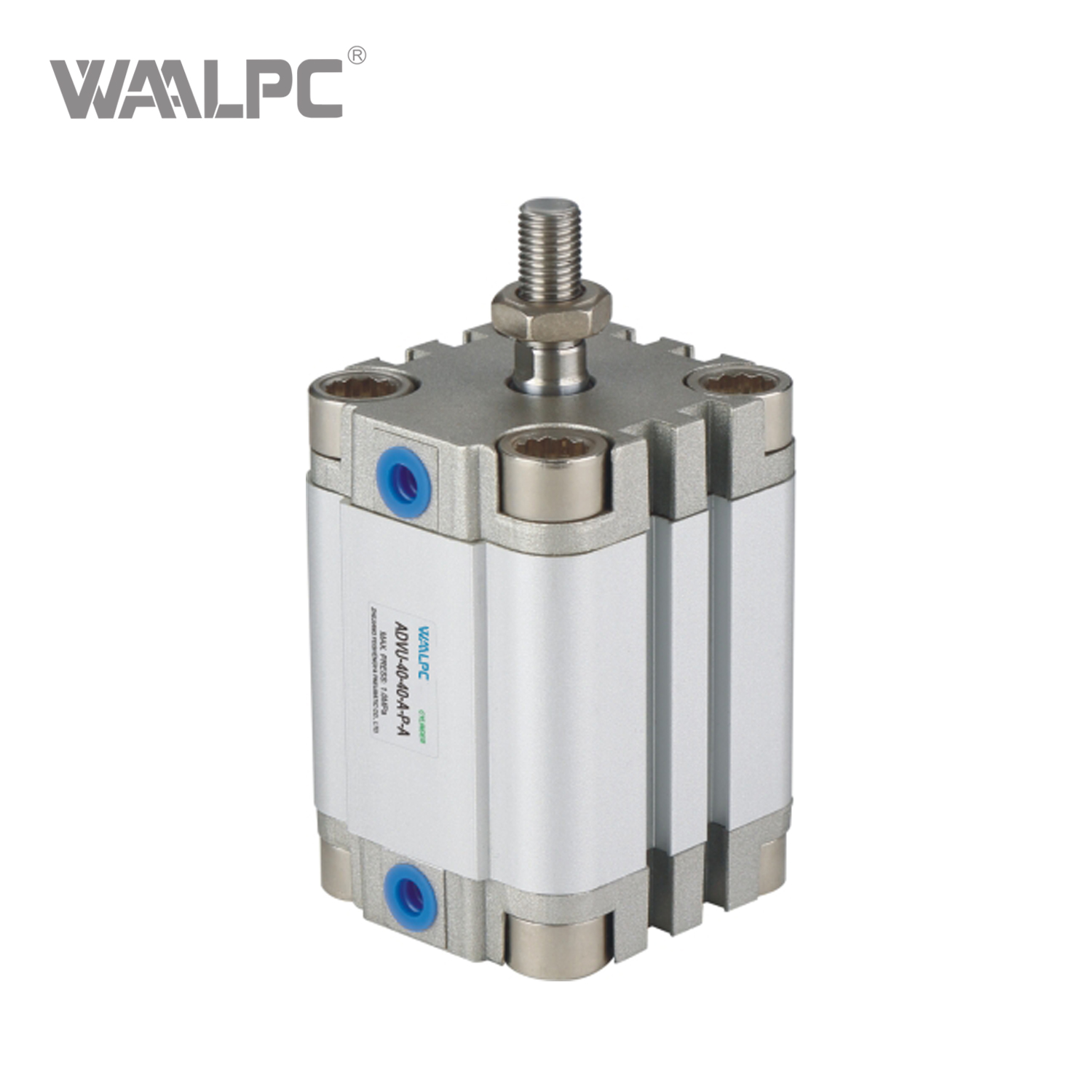

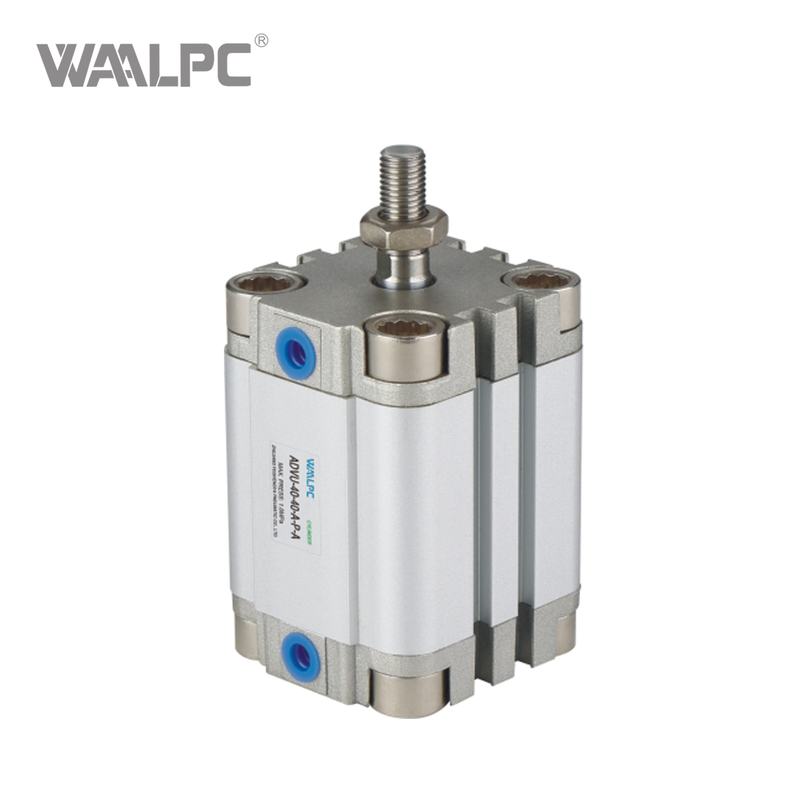

订购代码
规格
| 缸径(毫米) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| 工作介质 | 洁净空气（40um过滤） | ||||||||||
| 作用形式 | 双作用弹簧伸出/弹簧复位 | ||||||||||
| 压力范围 | 双作用 | 0.1~1.0Mpa | |||||||||
| 春天的表演 | 0.2~1.0Mpa | ||||||||||
| 保证压力 | 1.5Mpa | ||||||||||
| 工作温度 | -5~70℃ | ||||||||||
| 速度范围 | 双作用：30~500mm/s 弹簧作用：50~500mm/s | ||||||||||
| 行程耐受性 | 0~150 +1.00mm >150 +1.40mm | ||||||||||
| 缓冲类型 | 橡胶垫 | ||||||||||
| 接口尺寸 | M5x0.8 | G1/8 | G1/4 | ||||||||

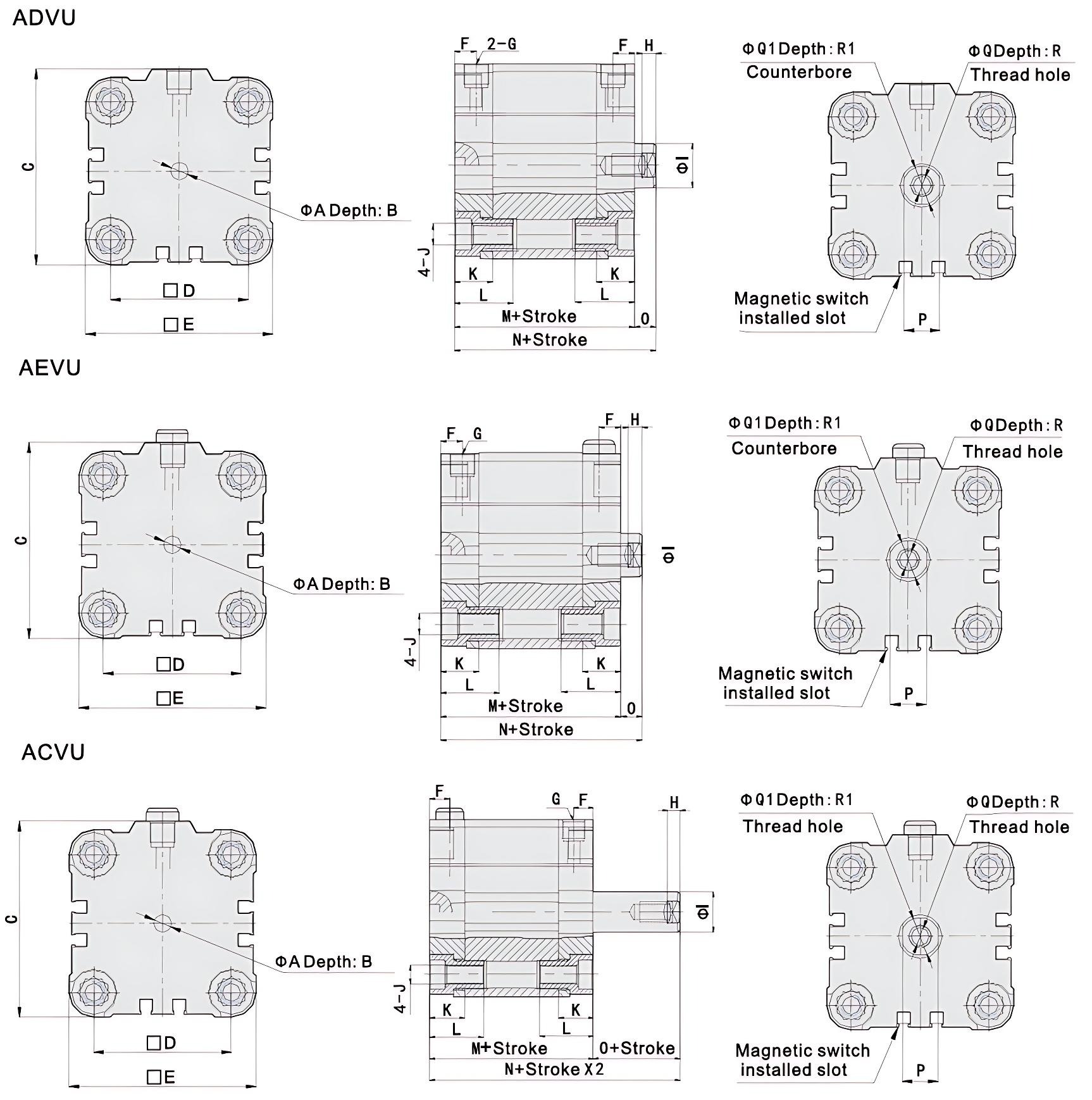

外形尺寸及结构
| 孔/标志 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | Q1 | R | R1 |
| 12 | 6 | 4 | 30 | 18 | 29 | 8 | M5X0.8 | 3 | 6 | M4X0.7 | 11.5 | 18 | 38 | 42.5 | 4.5 | 5 | M3X0.5 | 3.3 | 8 | 1.5 |
| 16 | 6 | 4 | 30 | 18 | 29 | 8 | M5X0.8 | 3 | 8 | M4X0.7 | 11.5 | 18 | 38 | 42.5 | 4.5 | 7 | M4X0.7 | 4.5 | 10 | 1.5 |
| 20 | 6 | 4 | 37.5 | 22 | 36 | 8 | M5X0.8 | 3 | 10 | M5X0.8 | 11.5 | 18 | 38 | 42.5 | 4.5 | 9 | M5X0.8 | 5.5 | 12 | 2 |
| 25 | 6 | 4 | 41.5 | 26 | 40 | 8 | M5X0.8 | 4 | 10 | M5X0.8 | 11.5 | 18 | 39.5 | 45 | 5.5 | 9 | M5X0.8 | 5.5 | 12 | 2 |
| 32 | 6 | 4 | 52 | 32 | 50 | 8 | G1/8 | 4.5 | 12 | M6X1.0 | 14 | 21 | 44.5 | 50.5 | 6 | 32 | M6X1.0 | 6.5 | 14 | 2.6 |
| 40 | 6 | 4 | 62.5 | 42 | 60 | 8 | G1/8 | 4.5 | 12 | M6X1.0 | 14 | 21 | 45.5 | 52 | 6.5 | 10 | M6X1.0 | 6.5 | 14 | 2.6 |
| 50 | 6 | 4 | 71 | 50 | 68 | 8 | G1/8 | 5 | 16 | M8X1.25 | 14 | 22 | 45.5 | 53 | 7.5 | 10 | M8X1.25 | 8.5 | 16 | 3.3 |
| 63 | 8 | 4 | 91 | 62 | 87 | 8 | G1/8 | 5 | 16 | M10X1.5 | 15 | 24 | 50 | 57.5 | 7.5 | 13 | M8X1.25 | 8.5 | 16 | 3.3 |
| 80 | 8 | 4 | 111 | 82 | 107 | 8.5 | G1/8 | 5.5 | 20 | M10X1.5 | 16 | 27 | 56 | 64 | 8 | 17 | M10X1.5 | 10.5 | 20 | 4.7 |
| 100 | 8.1 | 4 | 133 | 103 | 128 | 10.5 | G1/8 | 7 | 25 | M10X1.5 | 19 | 32 | 66.5 | 76.5 | 10 | 22 | M12X17.5 | 12.5 | 21 | 6.1 |
